Euro-Mill Maximart SUP8BVS

Gereedschap freesmachine

  • Tafelafmeting 425 x 1575 mm
  • X/Y/Z verplaatsing 1200 x 580 x 600 mm
  • Spindel conus NT 40

Beschrijving

Euro-Mill Maximart SUP 8BVS

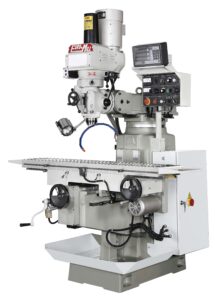

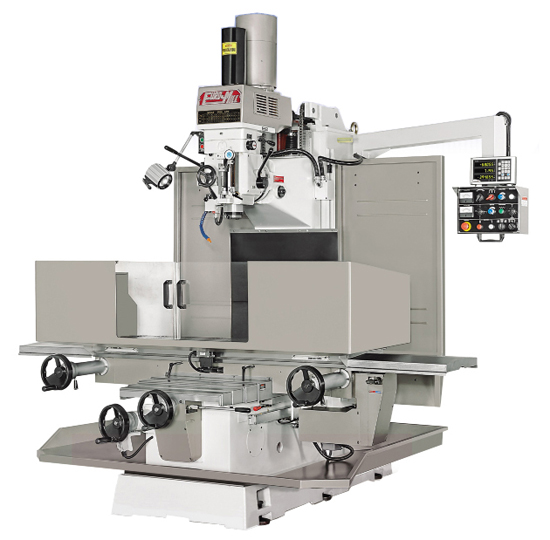

Klik op de foto van de machine voor meer informatie.

ITEM/MODEL

SUP8BVS

Table

Table size

16.75” × 62” (425 × 1575mm)

Table load capacity

1550 lbs

Number of T-slots

4

T-slots width

0.709” (18mm)

T-solts center distance

3.15” (80mm)

Table ways (X Axis)

Dovetail

Bed ways (Y Axis)

Square

Column ways (Z Axis)

Square

Travels

Longitudinal (X Axis)

– Manual

47.24” (1200mm)

Cross (Y Axis ) – Manual

22.83” (580mm)

Vertical (Z Axis ) – Manual

23.62” (600mm)



With concertina way covers vertical travel reduce 50 mm

Quill

6” (152mm)

Head tilt (left or right)

90°

X/Y axis feeds

1.1-43.3 (in/min) 28-1100 (mm/min)

Z axis feeds

0.71-31 (in/min) 18-788 (mm/min)

X/Y axis AC motor

1 HP W/-Brake

X/Y/Z axis AC motor

1/2 HP W/-Brake

X/Y/Z Inverter driver

1HP

Spindle

Spindle Motor

7.5HP W/-Brake

Inverter drive

7.5HP



Low gear range (rpm) 50HZ

65-590

Low gear range (rpm) 60HZ

65-590

High gear (rpm) 50HZ

575-5160

High gear (rpm) 60HZ

575-5160

Spindle taper

NT 40

Spindle bearing

CP 4

Quill feed in/revolution

0.0016/0.003/0.006

Quill feed mm/revolution

0.04/0.08/0.15

Quill dia.

4.33” (110mm)

Construction

Width across column ways

11.73” (298mm)

Length of saddle on bed

53.15” (1350mm)

Width across bed ways

22.83” (580mm)

Floor to table surface

34.30” (871mm)

Ball pitch (Imperial)

2”

Ball pitch (Metric)

5 mm

Ball screw dia.

1.26” (32mm)

Ball screw class

C7

Halogen work light

(Long arm)

24V / 55W

Coolant pump

1/8HP-180L

Gross weight

7260 lb (3300 kgs)

    Above specifications are subject to change without prior notice.
