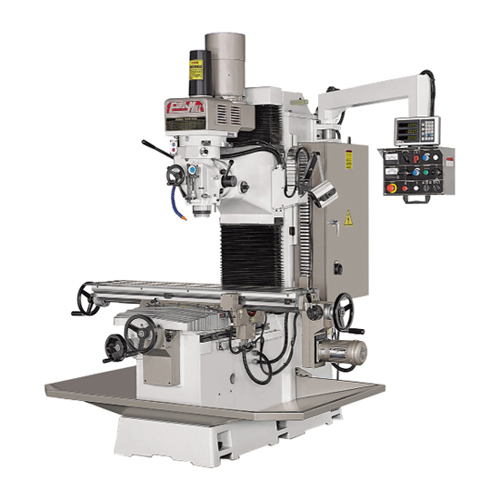

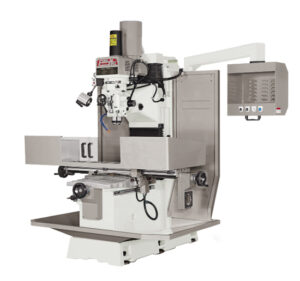

Euro-Mill Maximart 4BVS/SUP4BVS
Klik op de foto van de machine voor meer informatie.
ITEM/MODEL |
4BVS/SUP4BVS |
|
|
Table |
|
||
Table size |
10” × 54” (254 × 1370mm) |
|
|
Table load capacity |
800 lbs |
|
|
Number of T-slots |
3 |
|
|
T-slots width |
0.63” (16mm) |
|
|
T-solts center distance |
2.48” (63mm) |
|
|
Table ways (X Axis) |
Dovetail |
|
|
Bed ways (Y Axis) |
Square |
|
|
Column ways (Z Axis) |
Square |
|
|
Travels |
|
||
Longitudinal (X Axis) – Manual |
29.53” (750mm) |
|
|
Cross (Y Axis ) – Manual |
17.52” (445mm) |
|
|
Vertical (Z Axis ) – Manual |
19.29” (490mm) |
|
|
|
With concertina way covers vertical travel reduce 50 mm |
|
|
Quill |
5” (127mm) |
|
|
Head tilt (left or right) |
90° |
|
|
X/Y axis feeds |
0.71-31 (in/min) 18-788 (mm/min) |
|
|
Z axis feeds |
0.71-31 (in/min) 18-788 (mm/min) |
|
|
X/Y axis AC motor |
1/2 HP W/-Brake |
|
|
X/Y/Z axis AC motor |
1/2 HP W/-Brake |
|
|
X/Y/Z Inverter driver |
1HP |
|
|
Spindle |
|
||
Spindle Motor |
5 HP |
5HP W/-Brake |
|
Inverter drive |
Mechanical |
5HP |
|
Low gear range (rpm) 50HZ |
55-410 |
65-590 |
|
Low gear range (rpm) 60HZ |
70-500 |
65-590 |
|
High gear (rpm) 50HZ |
470-3550 |
575-5160 |
|
High gear (rpm) 60HZ |
570-4300 |
575-5160 |
|
Spindle taper |
NT 40 |
|
|
Spindle bearing |
CP 4 |
|
|
Quill feed in/revolution |
0.0016/0.003/0.006 |
|
|
Quill feed mm/revolution |
0.04/0.08/0.15 |
|
|
Quill dia. |
4.13” (105mm) |
|
|
Construction |
|
||
Width across column ways |
11.73” (298mm) |
|
|
Length of saddle on bed |
25.95” (660mm) |
|
|
Width across bed ways |
16.53” (420mm) |
|
|
Floor to table surface |
36.20” (920mm) |
|
|
Ball pitch (Imperial) |
2” |
|
|
Ball pitch (Metric) |
5 mm |
|
|
Ball screw dia. |
1.26” (32mm) |
|
|
Ball screw class |
C7 |
|
|
Halogen work light (Long arm) |
24V / 55W |
|
|
Coolant pump |
1/8HP-180L |
|
|
Gross weight |
4400 lb (2000 kgs) |
|
|
● Above specifications are subject to change without prior notice. |
