Euro-Mill Maximart 4VA/4VS/4Vi

Gereedschap freesmachine

  • Tafelafmeting 254 x 1372 mm
  • X/Y/Z verplaatsing 1050 x 390 x 355 mm
  • Spindel conus NT 40

Beschrijving

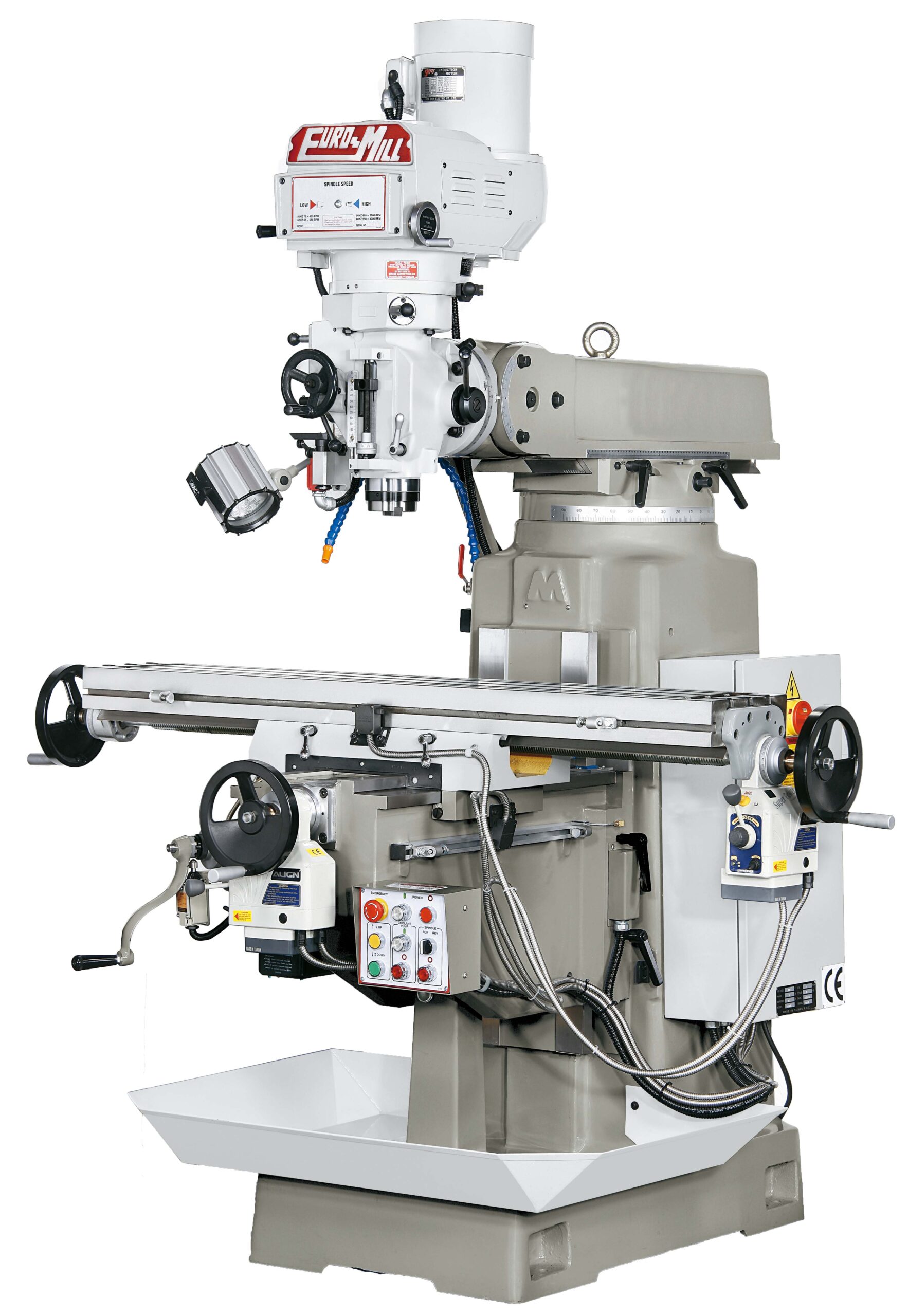

Euro-Mill Maximart 4VA/4VS/4Vi

Klik op de foto van de machine voor meer informatie.

ITEM/MODEL

4VA/4VS/4Vi

Table

Table size

254 × 1372 (10”× 54”)

No. of T-slots

NO. 3

T-slots width

28 (1.1”)

Slideway hardened &

surface ground

YES

Table surface hardened & Ground

YES

Slideway dovetail “V” or

square “SQ”

X = V

YZ = SQ

Manual Travels

X axis

Manual

1050 (41.3”)

Auto(Opt.)

970 (38.2”)

Y axis

390 (15.4”)

Z axis

355 (14.0”)

Ram

555 (21.9”)

Milling Head

Motor

5HP

Spindle speed r.p.m.

(InVerter Variable)

70-4200-INVERTER

Spindle taper

NT40

Quill travel

127(5”)

Quill feed/spindle rev.

0.04, 0.08, 0.015

rev. (0.0015”, 0.0031”, 0.006”)

Quill diameter

127(5”)

Head tilt (front or back)

45°

Head swivel (left or right)

90°

Construction

Column turret diameter

Ø390(Ø15.35”)

Knee width

340(13.39”)

Column bearing length

430(16.93”)

Saddle/table bearing length

515(20.28”)

Ram/turret bearing length

435(17.13”)

Ram length

850(33.46”)

Machine net weight

1450kgs(3190 lbs)

    Above specifications are subject to change without prior notice.
