Euro-Mill Maximart 8UM

Gereedschap freesmachine

  • Tafelafmeting 1500 x 350 mm
  • X/Y/Z verplaatsing 1150 x 400 x 500 mm
  • Spindel conus ISO 40 / ISO 50

Description

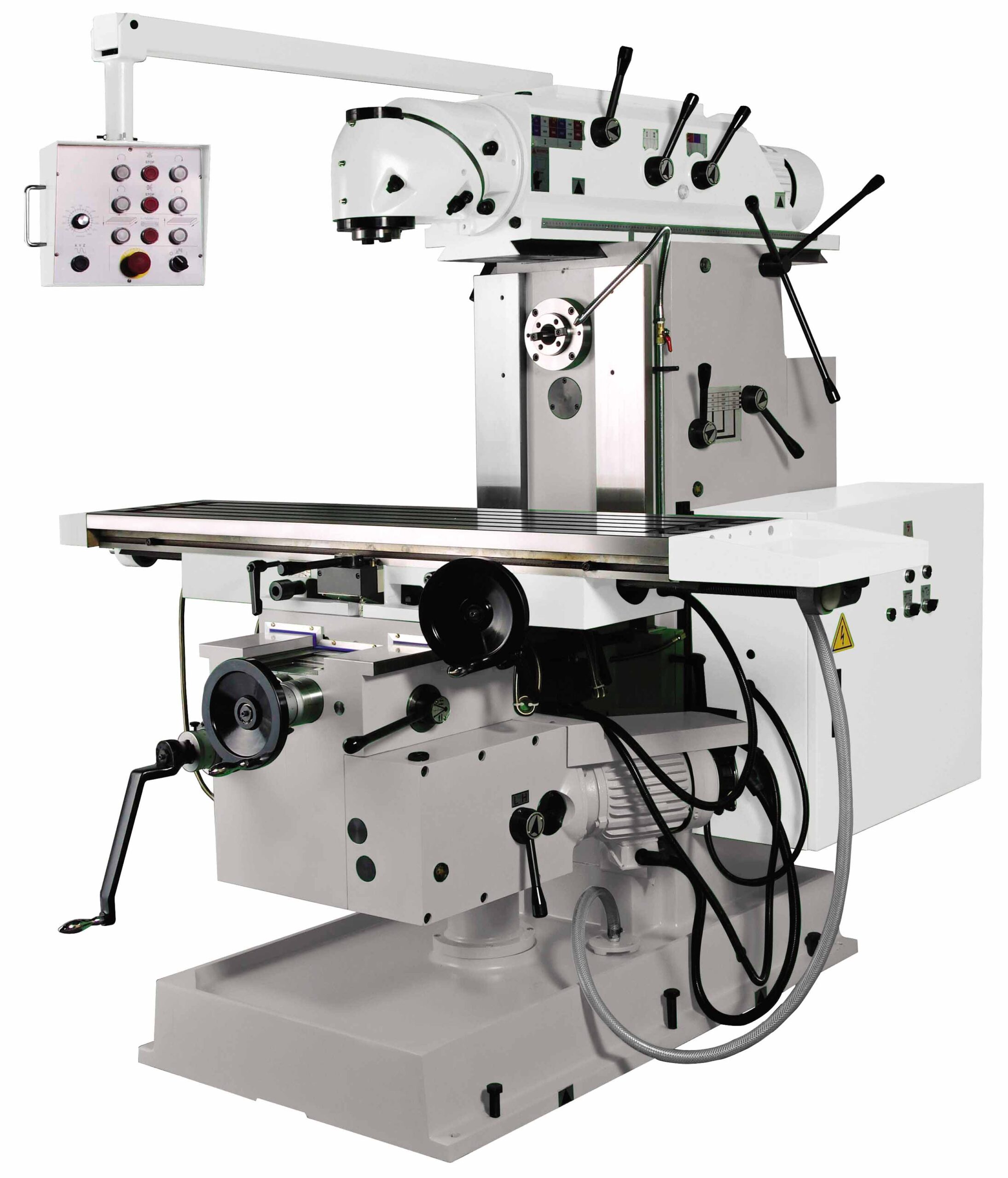

Euro-Mill Maximart 8UM

Klik op de foto van de machine voor meer informatie.

ITEM/MODEL

8UM

Table

Table size

1500 × 350 mm

T-slots (size×number×distance)

16 × 5 × 60 mm

Table swivel (R&L)

45°

Table load capacity

700 kgs

Travel

Automatic longitudinal

1150 mm

Automatic cross

400 mm

Automatic vertical

500 mm

Distance from spindle to overarm

155 mm

Quill travel

Spindle

Spindle taper

ISO-40/50 (optional)

Diameter of the spindle nose

88.88 – 128.57 mm

Milling arbor oliameter (*)

27 mm

Number of spindle speeds (R.P.M.)

12 (40-1800) 50HZ

Feeds

Longitudinal and cross feeds

10-1208 mm

Vertical feed

5-604 mm

Rapid Traverse

Longitudinal and cross

1208 mm/min

Vertical

604 mm/min

Motors

Main motor HP

7.5

Feed motor HP

2.5

Coolant

Coolant-pump HP

1/8

Motorized Overarm

Housing of the taper spindle

ISO-40/50 (optional)

Number of speeds

12

Speed range (R.P.M.)

35-1600 (50HZ) 42-1960 (60HZ)

Motor HP

5.5

Machine Weight

Net Weight

3200 kgs

Gross Weight

3500 kgs

Machine Dimensions

700 × 1700 × 2110 mm

Packing measurement (L×W×H)

1800 × 2300 × 2300 mm

    Above specifications are subject to change without prior notice.
