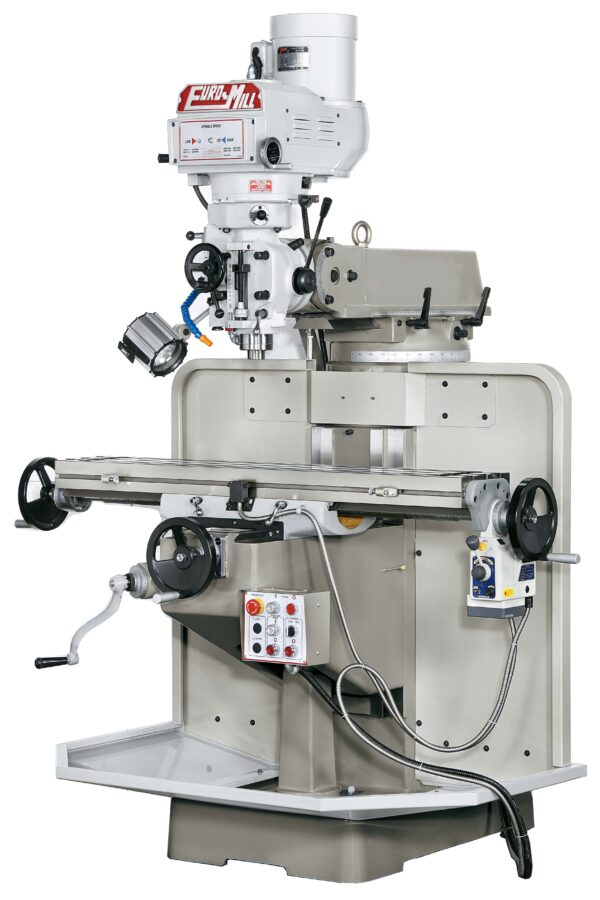

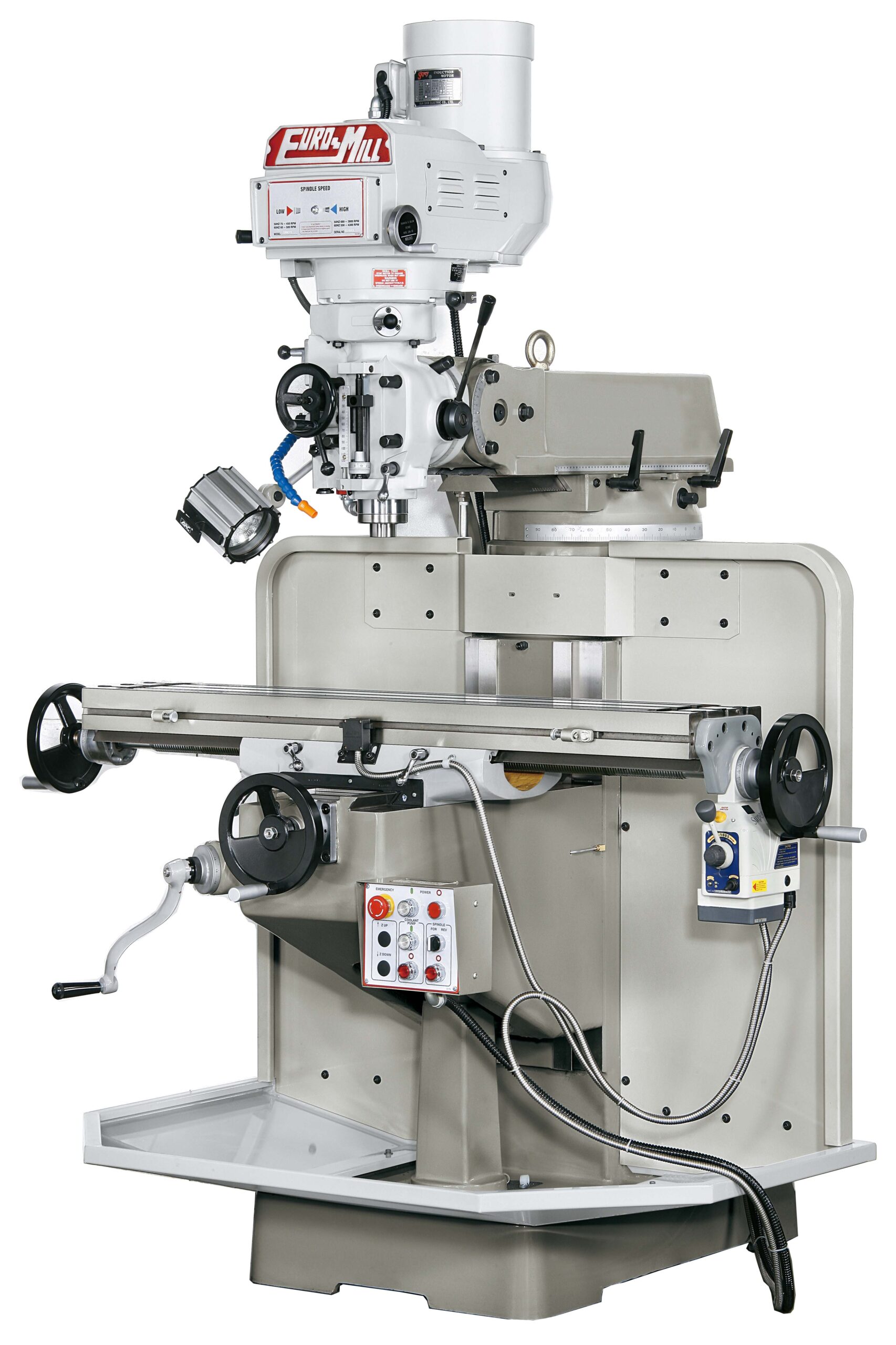

Euro-Mill Maximart 2VA/2VS/2Vi

Gereedschap freesmachine

  • Tafelafmeting 230 x 1245 mm
  • X/Y/Z verplaatsing 970 x 360 x 355 mm
  • Spindel conus R8 / NT 30

Description

Euro-Mill Maximart 2VA/2VS/2Vi

Klik op de foto van de machine voor meer informatie.

ITEM/MODEL

2VA/2VS/2Vi

Table

Table size

230 × 1245 (9”× 49”)

No. of T-slots

NO. 3

T-slots width

28 (1.1”)

Slideway hardened &

surface ground

YES

Table surface hardened & Ground

YES

Slideway dovetail “V” or

square “SQ”

XYZ = V

Manual Travels

X axis

Manual

970 (38.2”)

Auto(Opt.)

890 (35.0”)

Y axis

360 (14.2”)

Z axis

355 (14.0”)

Ram

470 (18.5”)

Milling Head

Motor

3HP

Spindle speed r.p.m.

(Step Pulley)

50HZ / 75-3800 16-Step

60HZ / 60-4300 16-Step

Spindle speed r.p.m.

(Mechanical Variable)

50HZ/ Low range 75-450

High range 680-3800-VARIABLE

60HZ/ Low range 60-500

High range 550-4300-VARIABLE

Spindle speed r.p.m.

(InVerter Variable)

70-4200-INVERTER

Spindle taper

R8/NT30

Quill travel

127(5”)

Quill feed/spindle rev.

0.04, 0.08, 0.015

rev. (0.0015”, 0.0031”, 0.006”)

Quill diameter

86(3.38”)

Head tilt (front or back)

45°

Head swivel (left or right)

90°

Construction

Column turret diameter

Ø380(Ø14.96”)

Knee width

290(11.42”)

Column bearing length

420(16.54”)

Saddle/table bearing length

505(19.89”)

Ram/turret bearing length

410(16.14”)

Ram length

735(28.94”)

Machine net weight

950kgs(2100 lbs)

    Above specifications are subject to change without prior notice.
